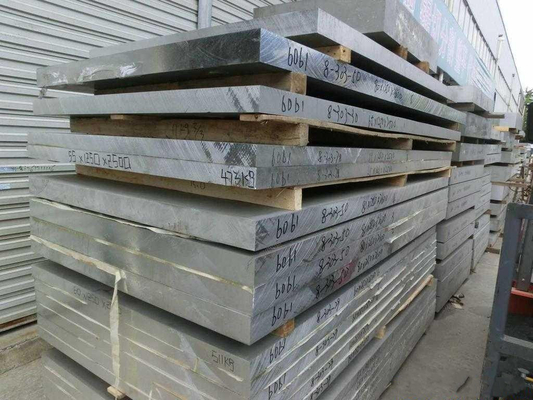

ASTM B209 JIS H4000-2006 Aluminum Sheet Plate Thickness 40mm 45mm 50mm 55mm 60mm 65mm 6061 T4 6061 T6
Description:
6061 Aluminum Sheet & Plate offers a combination of higher strength, good corrosion resistance and machinability making the 6061 grade the most widely used aluminum sheet and plate grade available for all types of fabrication projects. The general purpose 6061 Aluminum Sheet & Plate is heat treatable, resists cracking due to stress, and is easy to weld and machine, but limited on formability. 6061 Aluminum Sheet & Plate are ideal for structural framing, base plates, gussetts, aircraft, marine and automotive parts, etc.
MECHANICAL PROPERTIES:
Tensile Strength = 45 ksi; Yield Point = 40 ksi
Elongation % in 2"= 12%
Modulus of Elasticity = 10 ksi
Shear Strength = 30 ksi; Fatigue Limit = 14%
Brinell Hardness = 95
|
Product Name6061
|
6061 Aluminum Alloy Plate
|
|
Temper
|
O, H12, H14, H16, H18, H22, H24, H26, H32, H112
|
|
Thickness
|
0.1mm - 260mm
|
|
Width
|
500-2000mm
|
|
Length
|
to clients’ requirement
|
|
Coating
|
Polyester, Fluorocarbon, polyurethane and epoxy coating
|
|
Surface
|
Mill finished, Coated, Embossed,Brushed, Polished, Mirror, Anodized,etc
|
|
Gloss
|
Meet the customer requirement
|
|
Material
|
Aluminum Alloy Metal
|
|
Standard
|
GB/T3190-2008,GB/T3880-2006,ASTM B209,JIS H4000-2006,etc
|
|
OEM service
|
Perforated, Cutting special size, Doing flatness, Surface treatment,etc
|
|
Usage
|
Construction filed, Ships building industry, Decoration, Industry,Manufacture,Machinery and hardware fields, etc
|
|
Delivery
|
In general, within 7-15 working days after receiving deposit or According to Final order quantity.
|
|
Material table
|
Product use
|
|
|
1000 series
|
1050
|
Food, chemical and extrusion coils, various hoses, fireworks powder |
|
1060
|
Chemical equipment is its typical use | |
|
1100
|
Chemical products, food industry installations and storage containers, weldments, heat exchangers, printed boards, nameplates and reflective appliances | |
|
|
2024
|
Aircraft structures, rivets, missile components, truck hubs, propeller components and other structural components |
|
2A12
|
Aircraft skin, spacer frame, wing rib, wing beam, rivet, etc., and structural parts of buildings and transportation vehicles | |
|
2A14
|
Free forging and die forging with complex shape | |
|
3000 series
|
3003
|
Kitchen utensils, food and chemical products, storage equipment, storage tanks for transporting liquid products, and various pressure vessels and pipelines |
|
3004
|
Chemical product production and storage devices, plate processing parts, building processing parts, building tools and various lamp parts | |
| 3105 | Room partition, baffle, movable room board, eaves gutter and downpipe, sheet forming parts, bottle caps, corks, etc | |
|
4000 series
|
4032
|
Piston, cylinder head |
|
4043
|
Building distribution frame | |
|
4343
|
The products are widely used in automobiles, water tanks, radiators, etc. | |
|
5000 series
|
5052
|
Aircraft fuel tank, oil pipe, traffic vehicle and ship sheet metal parts, instruments, street lamp supports and rivets, hardware products, etc |
|
5083
|
Plate Weldments of ships, automobiles and aircraft; Pressure vessel, refrigeration device, TV Tower, drilling equipment, transportation equipment | |
|
5754
|
Storage tanks, pressure vessels, ship materials | |
|
6000 series
|
6005
|
Ladder, TV antenna, etc |
|
6061
|
Pipes, rods, profiles and plates for trucks, towers, ships, trams, furniture, mechanical parts, precision machining, etc | |
| 6063 | Building profiles, irrigation pipes and extruded materials for vehicles, stands, furniture, fences, etc | |
|
|
7075
|
It is used for manufacturing aircraft structure and other high stress structural parts and molds with high strength and strong corrosion resistance |
|
7175
|
High strength structure for forging aircraft. | |
| 7475 | Aluminum clad and non aluminum clad plates for fuselage, wing frame, stringer, etc. Other parts with high strength and high fracture toughness | |
| 8000 series |
8011
|
The aluminum plate with bottle cap as the main function is also used in radiators, most of which are used in aluminum foil products
|
Product Details:
Product Processing:
Quality Inspection:
Packing and Shipping:
Certifications:
About Us:
Jiangsu Pucheng Metal Products Co., Ltd. is located in Wuxi, Jiangsu Province, on the coast of the beautiful Taihu Lake. It is located in China's stainless steel distribution center, with convenient transportation and complete processing facilities.
Our company is a professional enterprise integrating seamless steel pipes, stainless steel pipes, steel profiles, galvanized steel coils, color-coated steel coils, copper pipes, aluminum sheets and non-ferrous metals. Focusing on manufacturing and international business fields, in line with the principles of sincerity, credit, mutual benefit and abundant Chinese resources, we have provided customers with the best quality products and value-added services of Pucheng for more than 10 years. The company mainly produces: steel pipes (seamless pipes, welded pipes), steel plates, steel rods, steel coils, steel strips and steel bars. We have: stainless steel/carbon steel/iron/copper/aluminum/alloy steel/galvanized/chrome plating and other materials, our products meet the production standards, each product has been successfully processed after many tests to ensure the quality and effect of the product. We provide polishing/bending/cutting/transport services, support secondary processing, and we have the most advanced equipment to support production according to drawings.
After years of development, the company has a sound logistics management and a sound after-sales system. Based on the principle of all customers first, Pucheng provides customers with 24-hour online and offline consultation and integrity services. In return, we have won a first-class reputation, Products are exported to Singapore, Indonesia, Korea, Dubai, Pakistan, Sri Lanka, Vietnam, , Malaysia, Indonesia, Mexico, Chile, Brazil, the Netherlands, Italy, Belgium, , Moldova, Paraguay, Uruguay, Germany, Spain, the United States, South Africa more than 40 countries and regions.
Development is endless and progress is endless. We will continue to carry forward the fine tradition and pioneering and innovative spirit of the Chinese people in Wuxi. Passionate, create a century-old Jinhua, a beautiful blueprint, go all out, and move forward with great strides. A bigger, more advanced and more dynamic Pucheng quickly rose up. Looking forward to cooperating with you.
