| MOQ: | 1 MT |
| Price: | Negotiable |
| Standard Packaging: | Exporting package/wooden box package/Or per customers’ requirement |
| Delivery Period: | 5-8 work days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 8000MT/Month |

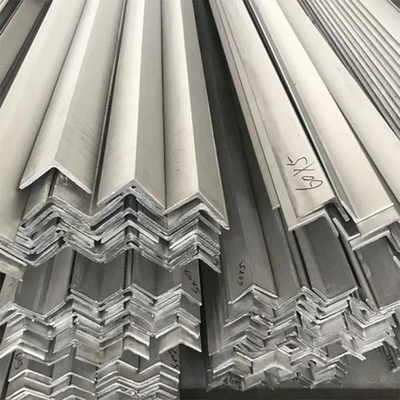

201 Stainless Steel Angle Bar JIS G3101:2004 Unequal 40X25 50X32 75X50 Ss304 Sus316
Descriptions
Unequal angle steel can be used for a huge array of purposes where uneven support is required in a project. For example, vehicles are usually asymmetrical or carrying more weight in certain parts than others, therefore uneven steel bars could be a practical form of structural reinforcement.Equal angle bars, standardized to EN 10056-1 (1998) and tolerances to EN 10056-2 (1993), have two parallel legs of the same length (size), whereas unequal angles have legs of two different sizes.
|
Product name
|
Stainless Steel Angle Bar
|
|
|
Material
|
304,304L,309S,310S,316,316L,316Ti,317,317L,321,347H,201,202,
405,409,410,420,430,etc
|
|
|
Type
|
Round,square,hexagonal,flat,angle
|
|
|
Surface
|
Pickled,Black,Bright,Polishing,Blasting,etc
|
|
|
Specification
|
Round bar
|
Diameter: 3mm~800mm
|
|
Angle bar
|
Size: 3mm*20mm*20mm~12mm*100mm*100mm
|
|
|
Square bar
|
Size: 4mm*4mm~100mm*100mm
|
|
|
Flat bar
|
Thickness: 2mm~100mm
|
|
|
Width: 10mm~500mm
|
||
|
Hexagonal
|
Size: 2mm~100mm
|
|
|
Quality test
|
we can offer MTC (mill test certificate)
|
|
|
MOQ
|
500 kilograms
|
|
|
Payment terms
|
L/C T/T (30%DEPOSIT)
|
|
|
Stock or not
|
enough stock
|
|
|
Packing
|
Bundled,wooden box for export standard package
|
|
|
Delivery time
|
7-15 days,or according to the order quantity or upon negotiation
|
|
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0.15 | ≤0.75 | 5.5-7.5 | ≤0.06 | ≤ 0.03 | 3.5-5.5 | 16.0-18.0 | - |
| 301 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 6.0-8.0 | 16.0-18.0 | - |
| 304 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-13.0 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤0.75 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 19.0-22.0 | 24.0-26.0 | - |
| 314 | ≤0.25 | ≤1.5-3.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 19.0-22.0 | 23.0-26.0 | |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-15.0 | 16.0-18.0 | 2.0-3.0 |
| 321 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.013 | 17.0-19.0 | - |
| 347 | ≤0.08 | ≤0.75 | ≤2.0 | ≤0.045 | ≤ 0.03 | 9.0-13.0 | 17.0-19.0 | |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | - | 11.5-13.5 | - |
| 420 | ≤0.16-0.25 | ≤1.0 | ≤1.0 | ≤0.040 | ≤ 0.03 | - | 12.0-14.0 | - |
| 430 | ≤0.12 | ≤0.75 | ≤1.0 | ≤0.040 | ≤ 0.03 | ≤0.60 | 16.0-18.0 | - |
| 904L | ≤0.02 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 23.0-28.0 | 19.0-23.0 | - |
|
Equal angle(A*T)
|
|||||
|
Size (mm)
|
Theoretical weight (kg/m)
|
Size (mm)
|
Theoretical weight (kg/m)
|
Size (mm)
|
Theoretical weight (kg/m)
|
|
25*3
|
1.124
|
75*7
|
7.976
|
110*14
|
22.809
|
|
25*4
|
1.459
|
75*8
|
9.03
|
125*8
|
15.504
|
|
30*3
|
1.373
|
75*10
|
11.089
|
125*10
|
19.133
|
|
30*4
|
1.786
|
80*6
|
7.376
|
125*12
|
22.696
|
|
40*3
|
1852
|
80*7
|
8.525
|
125*14
|
26.193
|
|
40*4
|
2.422
|
80*8
|
9.658
|
140*10
|
21.488
|
|
40*5
|
2.976
|
80*10
|
11.874
|
140*12
|
25.522
|
|
50*4
|
3.059
|
90*6
|
8.35
|
140*14
|
2949
|
|
50*5
|
3.77
|
90*7
|
9658
|
140*16
|
35.393
|
|
50*6
|
4.465
|
90*8
|
10.946
|
160-10
|
24.729
|
|
60*5
|
452
|
90*10
|
13.476
|
160*12
|
29.391
|
|
60*6
|
5.42
|
90*12
|
15.94
|
160*14
|
33.987
|
|
63*5
|
4822
|
100*6
|
9366
|
160*16
|
38.518
|
|
63*6
|
5.721
|
100*7
|
10.83
|
180*12
|
33.159
|
|
63*8
|
7.469
|
100*8
|
12.276
|
180*14
|
38.518
|
|
63*10
|
9.151
|
100*10
|
15.12
|
180*16
|
43.542
|
|
70*5
|
5.397
|
100*12
|
20.611
|
180*18
|
48.634
|
|
70*6
|
6.406 |
100*16
|
23.257
|
200*14
|
42.894
|
|
70*7
|
7.398
|
110*7
|
11.928
|
200*16
|
48.68
|
|
70*8
|
8.373
|
110*8
|
13.532
|
200*18
|
54.401
|
|
75*5
|
5.818
|
110*10
|
16.69
|
200-20
|
60.056
|
|
75*6
|
6.905
|
110*12
|
19.782
|
|
|
|
Unequal angle(A*T)
|
|||||
|
Size (mm)
|
Theoretical weight (kg/m)
|
Size (mm)
|
Theoretical weight (kg/m)
|
Size (mm)
|
Theoretical weight (kg/m)
|
|
25*16*3
|
0.912
|
75*50*8
|
7.431
|
125*80*7
|
11.066
|
|
32*20*3
|
1.171
|
75*50*10 |
9.098
|
125*80*8
|
12.551
|
|
32*20*4
|
1.522
|
80*50*5
|
5.005
|
125*80*10
|
15.474
|
|
40*25*3
|
1.484
|
80*50*6
|
5.935
|
125*80*12
|
18.33
|
|
40*25*4
|
1.936
|
80*50*7
|
6.848
|
140*90*8
|
141
|
|
45*28*3
|
1.687
|
80*50%
|
7.745
|
140*90*10
|
17.475
|
|
45*28*4
|
2.203
|
90*56*5
|
5.661
|
140*90*12
|
20.724
|
|
50*32*3
|
1.908
|
90*56*6
|
6.717
|
140*90*14
|
23.908
|
|
50*32*4
|
2.494
|
90*56*8
|
8779
|
160*100*10
|
19872
|
|
56*36*3
|
2.153
|
100*63*7
|
8.722
|
160*100*14
|
27.274
|
|
56*36*4
|
2.818
|
100*63*8
|
9878
|
160*100*16
|
30.853
|
|
56*396*5
|
3.466
|
100*63*10
|
12.142
|
180*110*10
|
22273
|
|
63*40*4
|
3.185
|
100*80*6 |
8.35
|
180*110*12
|
26.464
|
|
63*40*5
|
3.92
|
100*80*7
|
9656
|
180*110*14
|
30589
|
|
63*40*6
|
4.638
|
100*80*8
|
10.946
|
180*110*16
|
34.649
|
|
70*45*5
|
4.403
|
100*80*10
|
13.476
|
200*125*12
|
29.761
|
|
70*45*6
|
5.218
|
110*70*6
|
8.35
|
200*125*14
|
34.436
|
|
70*45*7
|
6011
|
110*70*7
|
9.656
|
200*125*16
|
39.045
|
|
75*50*5
|
4.808
|
110*70*8
|
10.946
|
200*125*18
|
43.588
|
|
75*50*6
|
5.699
|
110*70*10
|
13.476
|
|
|
Products Details
Quality Inspection:
Applications
Packing & Shipping
|
Port
|
SHANGHAI ,CHINA
|
|||
|
Package
|
In wooden cases or in wooden pallets
|
|||
|
Transport
|
BY SEA
|
|||
Our Warehouse
FAQ
Q:Are you trading company or manufacturer ?
|
|
