| MOQ: | 1 MT |
| Price: | Negotiable |
| Standard Packaging: | Exporting package/wooden box package/Or per customers’ requirement |
| Delivery Period: | 5-8 work days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 8000MT/Month |

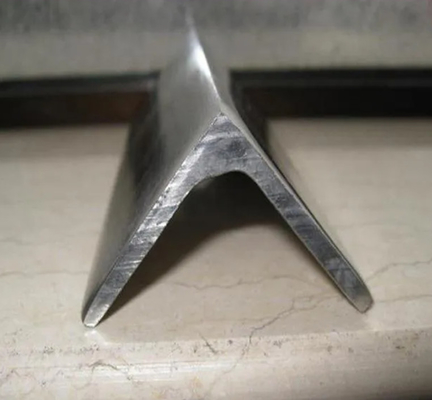

AISI 316 317 Stainless Steel Unequal Angle 32*20*4 50*32*3 56*36*3mm Cold Drawn L Shape
Descriptions
Hot rolled unequal angle, commonly referred to as RSA (Rolled Steel Angle) or angle iron is a versatile low cost, low carbon product suitable for a wide variety of applications. Angles are rolled to 90° with a fillet radius or root radius to reduce stress concentration at the corner.Unequal angle steel can be used for a huge array of purposes where uneven support is required in a project. For example, vehicles are usually asymmetrical or carrying more weight in certain parts than others, therefore uneven steel bars could be a practical form of structural reinforcement.
Pruduct name | Stainless Steel Angle |
Shape | Equal or Unequal |
Standard | ASTM, SUS, GB, DIN, JIS, EN, etc |
Technical | Hot Rolled |
Surface Treatment | Black, Bright or as request |
Grade | 200/300/400 Series |
Thickness | 25-125mm or as request |
Length | 1m - 12m, or according to your requests |
Application | Mechanical & Manufacture, Steel strcuture, Shipbuilding, Bridging, Automobile Chassis |
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0.15 | ≤0.75 | 5.5-7.5 | ≤0.06 | ≤ 0.03 | 3.5-5.5 | 16.0-18.0 | - |
| 301 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 6.0-8.0 | 16.0-18.0 | - |
| 304 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-13.0 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤0.75 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 19.0-22.0 | 24.0-26.0 | - |
| 314 | ≤0.25 | ≤1.5-3.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 19.0-22.0 | 23.0-26.0 | |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-15.0 | 16.0-18.0 | 2.0-3.0 |
| 321 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.013 | 17.0-19.0 | - |
| 347 | ≤0.08 | ≤0.75 | ≤2.0 | ≤0.045 | ≤ 0.03 | 9.0-13.0 | 17.0-19.0 | |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | - | 11.5-13.5 | - |
| 420 | ≤0.16-0.25 | ≤1.0 | ≤1.0 | ≤0.040 | ≤ 0.03 | - | 12.0-14.0 | - |
| 430 | ≤0.12 | ≤0.75 | ≤1.0 | ≤0.040 | ≤ 0.03 | ≤0.60 | 16.0-18.0 | - |
| 904L | ≤0.02 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 23.0-28.0 | 19.0-23.0 | - |
Details
Applications
Recommend Products
Packing & Shipping
Our Warehouse
Certificates
FAQ
3. Q: How long is your delivery time?
A: For Stocks, we can send the goods to loading port wiyhin 7 days after receiving the deposit ;For production period,it usually needs about 15 days ~30 days after receiving the deposit.
4. Q: Where's your factory?
A: Our factory is in jiangsu afforded enough production ability and earlier delivery time.
|
|
