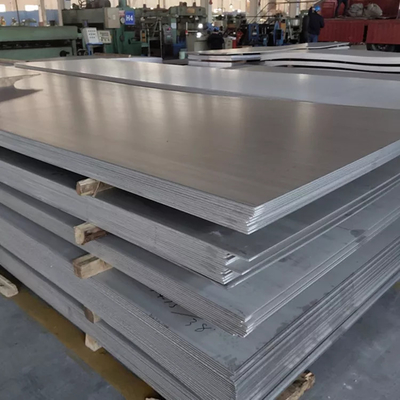

JIS SUS 309S 310S 410 Stainless Steel Metal Sheet Cold Rolled 1219mm Width
Product Description:
SS309 is a highly alloyed austenitic stainless steel used for its excellent oxidation resistance, high-temperature strength and creep resistance. The lower nickel content of SS309 compared to SS310 improves resistance to hydrogen sulfide (H2S) attack at high temperatures.
Alloy 309 (UNS S30900) is an austenitic stainless steel developed for use in high temperature corrosion resistance applications. The alloy resists oxidation up to 1900°F (1038°C) under non-cyclic conditions. Frequent thermal cycling reduces oxidation resistance to approximately 1850°F (1010°C).
410 stainless steel plate possesses high strength and hardness coupled with good corrosion resistance. Alloy 410 stainless steel plate is ductile and can be formed. It is magnetic in all conditions.
|
Product name
|
Stainless Steel Sheet
|
|
Grade
|
201,202,303, 303Cu,304,304L,316,316L,310S,316Ti,321,430,904L,etc.
|
|
Standard
|
AISI,ASTM,DIN,JIS,BS,NB
|
|
Certification
|
SGS,BV,IQI,TUV,ISO,etc.
|
|
Origin
|
Tisco, baosteel, jiusteel ,etc.
|
|
Specification
|
Wire: 0.01-10mm
Strip: 0.05*5.0-5.0*250mm Bar: φ4-50mm;Length 2000-5000mm Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm |
|
Package
|
clients' requirement and Standard export sea-worthy packing
|
|
Delivery time
|
5-15 days subject to the clients' requirement and quantity
|
| Chemical Composition Reference | |||||||
| Grade | C≤ | Si≤ | Mn≤ | P≤ | S≤ | Ni | Cr |
| 201 | 0.15 | 1.00 | 5.50-7.50 | 0.5 | 0.03 | 3.50-5.50 | 16.00-18.00 |
| 202 | 0.15 | 1.00 | 7.50-10.00 | 0.5 | 0.03 | 4.00-6.00 | 17.00-19.00 |
| 304 | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 8.00-11.00 | 18.00-20.00 |
| 304L | 0.03 | 1.00 | 2.00 | 0.045 | 0.03 | 8.00-12.00 | 18.00-20.00 |
| 309 | 0.20 | 1.00 | 2.00 | 0.04 | 0.03 | 12.00-15.00 | 22.00-24.00 |
| 309S | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 12.00-15.00 | 22.00-24.00 |
| 310 | 0.25 | 1.00 | 2.00 | 0.04 | 0.03 | 19.00-22.00 | 24.00-26.00 |
| 310S | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 19.00-22.00 | 24.00-26.00 |
| 316 | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 |
| 316L | 0.03 | 1.00 | 2.00 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 |
| 316Ti | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 |
| 410 | 0.15 | 1.00 | 1.00 | 0.04 | 0.03 | 0.60 | 11.50-13.50 |
| 430 | 0.12 | 0.12 | 1.00 | 0.04 | 0.03 | 0.60 | 16.00-18.00 |
|
Mechanical Property
|
|||||
|
Grade
|
State
|
Hardness HV
|
Yield Strength
|
Tensile Strength
|
Elongation(%)
|
|
SUS304
|
ANN
|
<200
|
>205
|
>520
|
>40
|
|
1/4H
|
200-250
|
>255
|
>550
|
>35
|
|
|
1/2H
|
250-310
|
>470
|
>780
|
>6
|
|
|
3/4H
|
310-370
|
>665
|
>930
|
>3
|
|
|
H
|
370-430
|
>880
|
>1130
|
--
|
|
|
SUS301
|
ANN
|
<250
|
>205
|
>520
|
>40
|
|
1/4H
|
250-310
|
>470
|
>780
|
>35
|
|
|
1/2H
|
310-370
|
>510
|
>930
|
>10
|
|
|
3/4H
|
370-430
|
>745
|
>1130
|
>5
|
|
|
H
|
430-490
|
>1030
|
>1320
|
>3
|
|
|
EH
|
490-550
|
>1275
|
>1570
|
--
|
|
|
SH
|
>550
|
>1500
|
>1850
|
--
|
|
|
SUS201
|
ANN
|
<200
|
>205
|
>515
|
>40
|
|
1/4H
|
200-250
|
>250
|
>550
|
>35
|
|
|
1/2H
|
250-310
|
>470
|
>780
|
>6
|
|
|
3/4H
|
310-370
|
>665
|
>930
|
>3
|
|
|
H
|
370-430
|
>880
|
>1130
|
--
|
|
|
SUS430
|
ANN
|
<200
|
>205
|
>450
|
>22
|
|
1/2H
|
200-250
|
>330
|
>505
|
>10
|
|
|
H
|
250-310
|
>420
|
>750
|
>6
|
|
|
SUS443
|
ANN
|
<200
|
>305
|
>483
|
>31
|
|
SUS310S
|
≤200
|
<200
|
>205
|
>520
|
>40
|
|
SUS316L
|
≤200
|
<200
|
>310
|
>620
|
>40
|
Product Details:
Production Line:
Application:
Packing and Shipping:
About Us:
FAQ:
Q1: Can I get some samples?
A1: Can provide small samples for free. Customized sample takes 5-7 days.
Q2: How about the delivery time?
A2: Small trial order takes 5-7 days. Container order need 15-20 days.
Q3: Do you have any protection when packing?
A3: Cover with PE film , wrap with waterproof paper, pack with wooden plate,
belt by steel strip, fasten on pallet.
Q4: Are you a factory?
A4: We are a factory setted up more than 20 years and export more than 15 years.
Q5: How about the after service?
A5: Free of charge for one year's warranty, and if there is any problem, our technician
will go to your place to check. if necessary, we will change the goods for youy.
