| MOQ: | 1 Ton |
| Price: | Negotiable |
| Standard Packaging: | Standard Shipping Packaging |
| Delivery Period: | 7-10 DAYS |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 5000 TONS PER MONTH |
ISO 2531 / EN 545 Class K9 C40 C30 C25 Cement Lined Ductile Iron Pipe Cast Iron Pipes For Potable Water Custom
Product Description
|
Model Number
|
Ductile Iron Pipe
|
|
Length
|
5.7m,6m
|
|
Standard
|
ISO2531/EN545/EN598
|
|
Application
|
pipeline
|
|
Shape
|
Round
|
|
Hardness
|
230HB
|
|
Pipe Wall Thickness
|
K7/K8/K9/C40/C30/C25
|
|
Pull Strength
|
>420MPa
|
|
Yield (≥ MPa)
|
300 MPa
|
|
Material
|
Ductile Iron
|
|
Type
|
Casting
|
|
Processing Service
|
Welding, Bending, Punching, Decoiling, Cutting
|
|
Certification
|
ISO2531:1998
|
|
Test
|
100% Water Pressure Test
|
|
Transport
|
Bulk Vessel
|
|
Delivery
|
In Container
|
|
Inner lining
|
Ordinary Cement
|

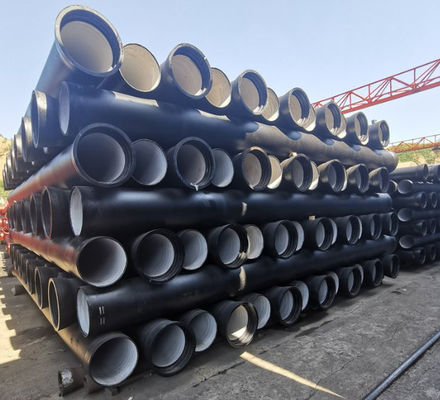

Detailed Picture
Technical parament
| DN(mm) | DE(mm) | THICKNESS OF WALL(mm) | WEIGHT OF SOCKET(kg) | TOTAL WEIGHT(kg) | ||||
| K8 | K9 | K10 | 3.4 | K8 | K9 | K10 | ||
| 80 | 98 | 6.0 | 6.0 | 6.0 | 4.3 | 77.0 | 77.0 | 77.0 |
| 100 | 118 | 6.0 | 6.0 | 6.0 | 5.7 | 93.7 | 95.0 | 95.0 |
| 125 | 144 | 6.0 | 6.0 | 6.0 | 7.1 | 119.0 | 119.0 | 121.0 |
| 150 | 170 | 6.0 | 6.O | 6.0 | 10.3 | 138.0 | 144.0 | 144.0 |
| 200 | 222 | 6.0 | 6.3 | 6.4 | 18.9 | 183.0 | 194.0 | 194.0 |
| 300 | 326 | 6.4 | 7.2 | 8.0 | 23.7 | 290.0 | 323.0 | 357.0 |
| 350 | 378 | 6.8 | 7.7 | 8.5 | 29.5 | 359.0 | 403.0 | 441.0 |
| 400 | 429 | 7,2 | 8.1 | 9.0 | 38.3 | 433.0 | 482.0 | 532.0 |
| 450 | 480 | 7.6 | 8.6 | 9.5 | 42.8 | 515.0 | 577.0 | 632.0 |
| 500 | 532 | 8.0 | 9.0 | 10.0 | 59.3 | 600.0 | 669.0 | 736.0 |
| 600 | 635 | 8.8 | 9.9 | 11.0 | 79.1 | 791.0 | 882.0 | 971.0 |
| 700 | 738 | 9.6 | 10.8 | 12.0 | 102.6 | 1009.0 | 1123.0 | 1237.0 |
| 800 | 842 | 10.4 | 11.7 | 13.0 | 129 | 1255.0 | 1394.0 | 1537.0 |
| 900 | 945 | 11.2 | 12.6 | 14.0 | 161.3 | 1521.0 | 1690.0 | 1863.0 |
| 1000 | 1048 | 12.0 | 13.5 | 15.0 | 237.7 | 1811.0 | 2017.0 | 2221.0 |
Production Flow
Packaging & Shipping
Certificate
FAQ
1.Q:Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
2.Q:How can we get the offer?
A:Please offer the specification of the product,such as material,size,shape,etc.So we can give the best offer.
Q:Do you provide custom made Products service?
A:Yes,if you have your own design , we can produce according to your specification and drawing.
|
|
